How to download images using IIIF manifests, Part II: Hacking the Vatican

Last week I posted on how to use a Firefox plugin called Down them All to download all the files from an e-codices IIIF manifest (there’s also a tutorial video on YouTube, one of a small but growing collection that will soon include a video outlining the process described here), but not all manifests include direct links to images. The manifests published by the Vatican Digital Library are a good example of this. The URLs in manifests don’t link directly to images; you need to add criteria at the end of the URLs to hit the images. What can you do in that case? In that case, what you need to do it build a list of urls pointing to images, then you can use Down Them All (or other tools) to download them.

In addition to Down Them All I like to use a combination of TextWrangler and a website called Multilinkr, which takes text URLs and turns them into hot links. Why this is important will become clear momentarily.

Let’s go!

First, make sure you have all the software you’ll need: Firefox, Down Them All, and TextWrangler.

Next, we need to pull all the base URLs out of the Vatican manifest.

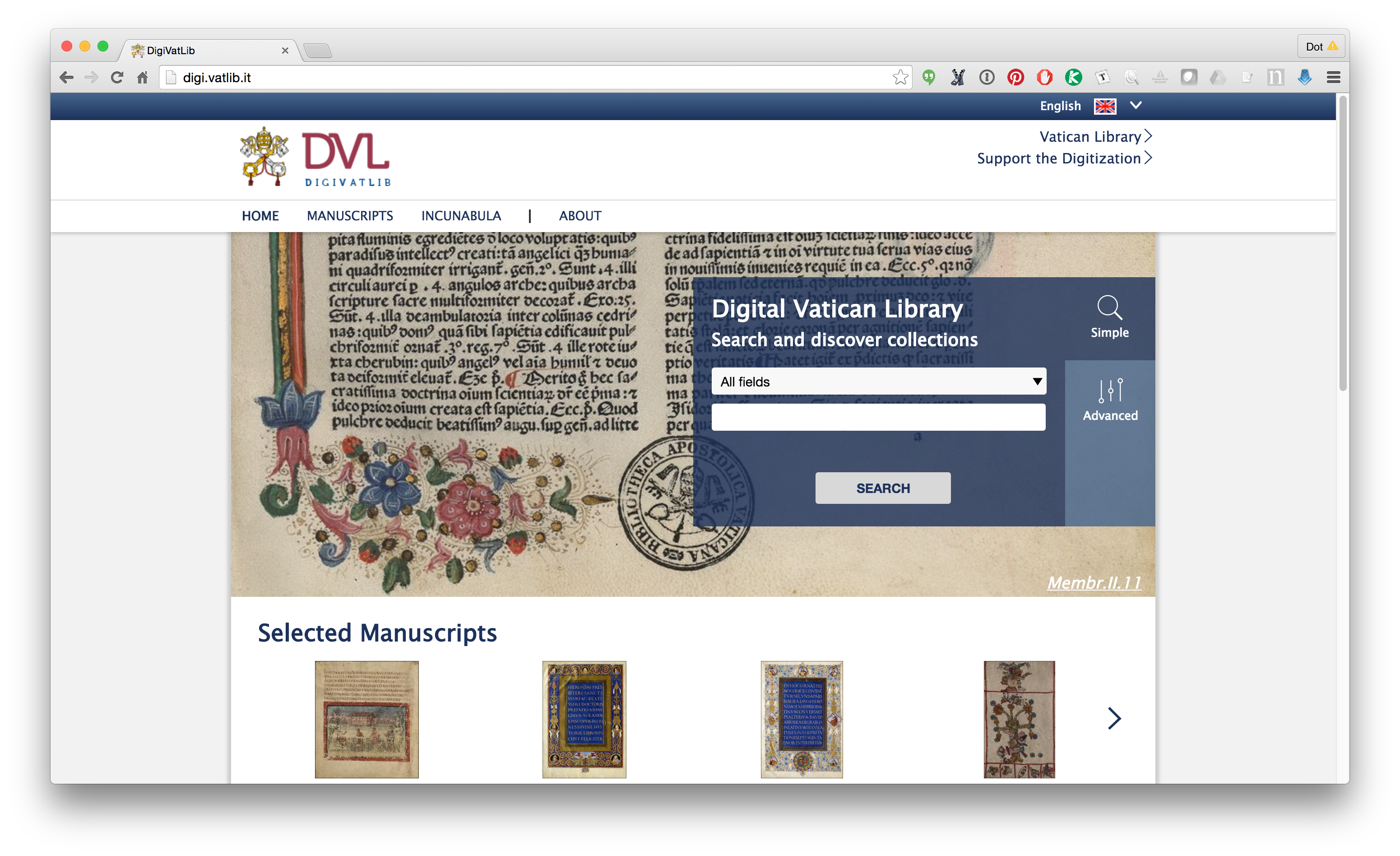

  1. Search the Vatican Digital Library for the manuscript you want. Once you’ve found one, download the IIIF manifest (click the “Bibliographic Information” button on the far left, which opens a menu, then click on the IIIF manifest link)
    Vatican Digital Library.
    Vatican Digital Library.

    Screen Shot 2016-07-19 at 9.40.49 AM
    Viewing Bibliographic Information. IIIF manifest is on the bottom of the list
  2. Open the manifest you just downloaded in TextWrangler. When it opens, it will appear as a single long string:
    Manifest open in TextWrangler.
    Manifest open in TextWrangler.

    You need to get all the URLs on separate lines. The easiest way to do this is to find and replace all commas with a comma followed by a hard return. Do this using the “grep” option, using “\r” to add the return. Your find and replace box will look like this (don’t forget to check the “grep” box at the bottom!):

    Find and replace. Don't forget grep!
    Find and replace. Don’t forget grep!

    Your manifest will now look something like this:

    Manifest, now with returns!
    Manifest, now with returns!
  3. Now we’re going to search this file to find everything that starts with “http” and ends with “jp2” (what I’m calling the base URLs). We’ll use the “grep” function again, and a little regular expression that will match everything between the beginning of the URL and the end( .* ). Your Find window should look like this (again, don’t forget to check “grep”). Click “Find All”:
    Find the URLs that end with "jp2"
    Find the URLs that end with “jp2”

    Your results will appear in a new window, and will look something like this:

    Search results.
    Search results.
  4. Now we want to export these results as text, and then remove anything in the file that isn’t a URL. First, go to TextWrangler’s File menu and select “Export as Text”:
    Export as Text.
    Export as Text.

    Save that text file wherever you’d like. Then open it in TextWrangler. You now need to do some finding and replacing, using “grep” (again!) and the .* regular expression to remove anything that is not http…jp2. I had to do two runs to get everything, first the stuff before the URLs, then the stuff after:

    Before first search.
    Before first find and replace.
    After first search.
    After first find and replace.
    Before second find and replace.
    Before second find and replace.

    After second find and replace.
    After second find and replace.
  5. You will notice (I hope!) that there are forward slashes (\) before every backslash/regular slash (/) in the URLs. So we need to remove them too. Just to a regular find and replace, DO NOT check the “grep” box:
    Before the slash find and replace.
    Before the slash find and replace.
    After the slash find and replace.
    After the slash find and replace.

    Hooray! We have our list of base URLs. Now we need to add the criteria necessary to turn these base URLs into direct links to images.

    I keep mentioning the criteria required to turn these links from error-throwers to image files. If you go to the Vatican Digital Library website and mouse over the “Download” button for any image file, you’ll see what I mean. As you mouse that button over a bar will appear at the very bottom of your window, and if you look carefully you’ll see that the URL there is the base URL (ending in “jp2”) followed by four things separated by slashes:

    Check out the bits after "jp2" in the URL.
    Check out the bits after “jp2” in the URL.

    There is a detailed description of what exactly these mean in the IIIF Image API Documentation on the IIIF website, but basically:

    [baseurl]/region/size/rotation/quality

    So in this case, we have the full region (the entire image, not a piece of it), size 1047 pixels across by however tall (since there is nothing after the comma), rotation of 0 degrees, and a quality native (aka default, I think – one could also use bitonal or gray to get those quality of images). I like to get the “full” image size, so what I’m going to add to the end of the URLS is:

    [baseurl]/full/full/0/native.jpg

    We’ll just do this using another find and replace in TextWrangler.

  6. We’re just adding the additional criteria after the file extension, so all I do is find the file extension – jp2 – and replace all with “jp2/full/full/0/native.jpg”.
    Adding criteria: before find and replace.
    Adding criteria: before find and replace.
    Adding criteria: After find and replace.
    Adding criteria: After find and replace.

    Test one, just to make sure it works. Copy and paste the URL into a browser.

    Works for me.
    Works for me.
  7. Now – finally! promise! – you can use Down them All to download all those lovely image files. In order to do that you need to turn the text links into hot links. When I was testing this I first tried opening the text file in Firefox and pointing Down Them All to it, but it broke Down Them All – and I mean BROKE it. I had to uninstall Down Them All and delete everything out of my Firefox profile before I could get it to work again. Happily I found a tool that made it easy to turn those text links into hot links: Multilinkr. So now open a new tab in Firefox and open Multilinkr. Copy all the URLs from TextWrangler and paste them into the Multilinkr box. Click the “Links” button and gasp as the text links turn into hot links:
    Text links.
    Text links.
    Hot links *gasp*
    Hot links *gasp*

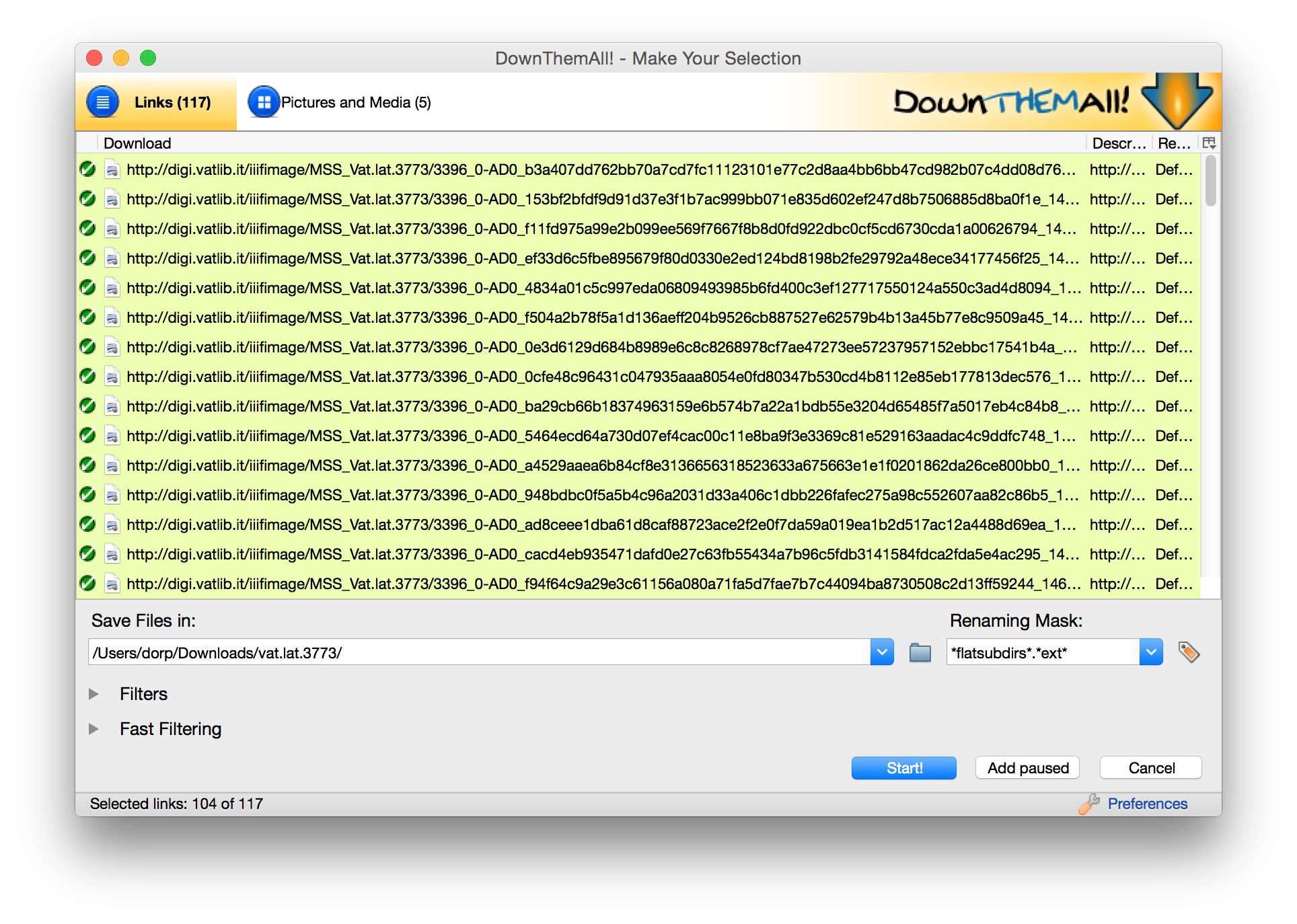

    Now go up to the Firefox “Tools” menu and select “Down Them All Tools > Down Them All” from the dropdown: Screen Shot 2016-07-21 at 1.51.15 PMDown Them All should automatically recognize all the files and highlight them. Two things to be careful about here. One is that you need to specify a download location. It will default to your Downloads folder, but I like to indicate a new folder using the shelfmark of the manuscript I’m downloading. You can also browse to download the files wherever you’d like. The second one is that Down Them All will keep file names the same unless you tell it to do something different. In the case of the Vatican that’s not ideal, since all the files are named “native.jpg”, so if you don’t do something with the “Renaming Mask” you’ll end up with native.jpg native.jpg(1) native.jpg(2) etc. I like to change the Renaming Mask from the default *name*.*ext* to *flatsubdirs*.*ext* – “flatsubdirs” stands for “flat subdirectories”, and it means the downloaded files will be named according to the path of subdirectories wherever they are being downloaded from. In the case of the Vatican files, a file that lives here:

    http://digi.vatlib.it/iiifimage/MSS_Vat.lat.3773/3396_0-AD0_f11fd975a99e2b099ee569f7667f8b8d0fd922dbc0cf5cd6730cda1a00626794_1469208118412_Vat.lat.3773_0003_pa_0002.jp2/full/full/0/native.jpg

    will be renamed

    iiifimage-MSS_Vat.lat.3773-3396_0-AD0_f11fd975a99e2b099ee569f7667f8b8d0fd922dbc0cf5cd6730cda1a00626794_1469208118412_Vat.lat.3773_0003_pa_0002.jp2-full-full-0.jpg

    This is still a mouthful, but both the shelfmark (Vat.lat.3773) and the page number or folio number are there (here it’s pa_0002.jp2 = page 2, in other manuscripts you’ll see for example fr_0003r.jp2), so it’s simple enough to use Automator or another tool to batch rename the files by removing all the other bits and just leaving the shelfmark and folio or page number.

There are other ways you could do this, too, using Excel to construct the URLs and wget to download, but I think the method outlined here is relatively simple for people who don’t have strong coding skills. Don’t hesitate to ask if you have trouble or questions about this! And please remember that the Vatican manuscript images are not licensed for reuse, so only download them for your own scholarly work.

How to download images using IIIF manifests, Part I: DownThemAll

IIIF manifests are great, but what if you want to work with digital images outside of a IIIF interface? There are a few different ways I’ve figured out that I can use IIIF manifests to download all the images from a manuscript. The exact approach will vary since different institutions construct their image URLs in different ways. Here’s the first approach, which is fairly straightforward and uses e-codices as an example. Tomorrow I’ll post a second post using on the Vatican Digital Library. Please remember that most institutions license their images, so don’t repost or publish images unless the institution specifically allows this in their license.

Method 1: The manifest has urls that resolve directly to image files

This is the easiest method, but it only works if the manifest contains urls that resolve directly to image files. If you can copy a url and paste it into a browser and an image displays, you can use this method. The manifests provided by e-codices follow this approach.

  1. Install DownThemAll, a Firefox browser plugin that allows you to download all the files linked to from a webpage. (There is a similar browser plugin for Chrome, called Get Them All, but it did not recognize the image files linked from the manifest)
  2. Go to e-codices, search for a manuscript, and click the “IIIF manifest” link on the Overview page.
    IIIF manifest link (look for the colorful IIIF logo)
    IIIF manifest link (look for the colorful IIIF logo)

    The manifest will open in the browser. It will look like a mess, but it doesn’t need to look good.

    Messy manifest.
    Messy manifest.
  3. Open DownThemAll. It will recognize all the files linked from the manifest (including .json files, .jpg, .j2, and anything else) and list them. Click the box next to “JPEG Images” at the bottom of the page (under “Filters”). It will highlight all the JPEG images in the list, including the various “default.jpg” images and files ending with “.jp2”

    Screen Shot 2016-07-14 at 4.46.47 PM
    JPEG images highlighted in Down Them All
  4. Now, we only want the images that are named “default.jpg”. These are the “regular” jpeg files; the .jp2 files are the masters and, although you could download them, your browser wouldn’t know what to do with them. So we need to create a new filter so we get only the default.jpg files. To do this, first click “Preferences” in the lower right-hand corner, then click the “Filters” button in the resulting window.
    Filters.
    Filters.

    There they are. To create a new filter, click the “Add New Filter” button, and call the new filter “Default Jpg” (or whatever you like). In the Filtered Extensions field, type “/\/default.jpg” – the filter will select only those files that end with “default.jpg” (yes you do need three slashes there!). Note that you do not need to press save or anything, the filter list updates and saves automatically.

    New filter
    New filter
  5. Return to the main Down Them All view and check the box next to your newly-created filter. Be amazed as all the “default.jpg” files are highlighted.

    AMAZE
    AMAZE
  6. Don’t hit download just yet. If you do, it will download all the files with their given names, and since they are all named “default.jpg” it won’t end well. It will also download them all directly to whatever is specified under “Save Files in” (in my case, my Downloads folder) which also may not be ideal. So you need to change the Renaming Mask to at least give you unique names for each one, and specify where to download all those files. In the case of e-codices the manifest urls include both the manuscript shelfmark and the folio number for each image, so let’s use the Renaming Mask to name the files according to the file page. Simply change *name* to *flatsubdirs* (flat subdirectories). Under “Save Files in”, browse to wherever you want to download all these files.

    Renaming Mask and Save Files in, read to go
    Renaming Mask and Save Files in, read to go
  7. Press “Start” and wait for everything to download.
    Downloading...
    Downloading…

    Congratulations, you have downloaded all the images from this manuscript! You’ll probably want to rename them (if you’re on Mac you can use Automator to do this fairly easily), and you should also save the manifest alongside the images.

    TOMORROW: THE VATICAN!

Manuscript PDFs: Update

My last post was an announcement that I’d posted the University of Pennsylvania’s Schoenberg Collection manuscripts on Google Drive as PDF files, along with details on how I did it. This is a follow-up to announce that I’ve since added PDF files for UPenn’s Medieval and Renaissance Manuscript collection, AND for the Walters Art Museum manuscripts (which are available for download through The Digital Walters).

As with the Schoenberg Manuscripts, these two other collections are in their own folders, along with a spreadsheet you can search and brows to aid in discovery. You are free to download the PDF files and redistribute them as you wish. They are in the public domain.

The main directory for the manuscripts is here.

Enjoy!
